UAC-B142-AF28-WL
Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.
Dolphin Series
UAC-B142-AF28-WL
UAC-B142-AF28-WL

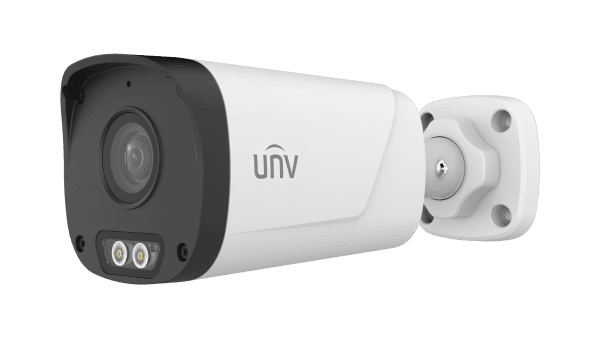

2MP ColorHunter Fixed Bullet Analog Camera featuring a 1/3.0" CMOS sensor, 24/7 color images with F1.0 aperture, and built-in microphone.
2MP high quality imaging
TVI/AHD/CVI/CVBS video output support
Supports white light illumination, 24/7 color images with F1.0 aperture
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu in 11 languages, easy to operate
IP67 waterproof and dustproof design, high reliability
Suitable applications
Request Product Information
Contact our team for product guidance, availability and quotation assistance.
Product Description
Product details
2MP ColorHunter Fixed Bullet Analog Camera featuring a 1/3.0" CMOS sensor, 24/7 color images with F1.0 aperture, and built-in microphone.
Core Specifications
Technical highlights
09 specifications
Resolution
2 MP (1920 × 1080)
Sensor
1/3.0" CMOS
Lens
2.8 mm / 4.0 mm Fixed
Output
TVI/AHD/CVI/CVBS
Illumination
White Light up to 40 m
WDR
DWDR
Audio
Built-in Mic (TVI/CVI)
Protection
IP67
Power
DC 12V ±25%
UAC-B142-AF28-WL
2MP high quality imaging
TVI/AHD/CVI/CVBS video output support
Supports white light illumination, 24/7 color images with F1.0 aperture
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu in 11 languages, easy to operate
IP67 waterproof and dustproof design, high reliability
Built-in microphone for high quality audio transmission via coaxial cables
Supports digital defog
