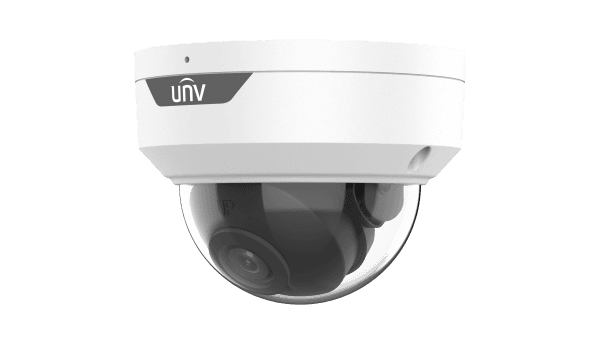

UAC-D125-AF28M
Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.
Whale Series
UAC-D125-AF28M
UAC-D125-AF28M
5MP LightHunter Fixed IR Dome Analog Camera featuring a 1/2.7" CMOS sensor, LightHunter monitoring, and IK10 vandal resistance.
High quality imaging with 5MP resolution
TVI/AHD/CVI/CVBS video output support
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
Supports 180° horizontal/vertical flip
OSD configuration menu in 11 languages, easy to operate
Suitable applications
Request Product Information
Contact our team for product guidance, availability and quotation assistance.
Product Description
Product details
5MP LightHunter Fixed IR Dome Analog Camera featuring a 1/2.7" CMOS sensor, LightHunter monitoring, and IK10 vandal resistance.
Core Specifications
Technical highlights
09 specifications
Resolution
5 MP (2880 × 1620)
Sensor
1/2.7" CMOS
Lens
2.8 mm / 4.0 mm Fixed
Output
TVI/AHD/CVI/CVBS
Illumination
IR up to 30 m
WDR
DWDR
Audio
Built-in Mic (TVI/CVI)
Protection
IP67 / IK10
Power
DC 12V ±25%
UAC-D125-AF28M
High quality imaging with 5MP resolution
TVI/AHD/CVI/CVBS video output support
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
Supports 180° horizontal/vertical flip
OSD configuration menu in 11 languages, easy to operate
Water and dust resistant (IP67) and vandal-resistant (IK10)
Built-in microphone for high quality audio transmission via coaxial cables
Metal base and metal housing, 3-Axis adjustment
