UAC-D128-ADF28MS
Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.
Whale Series
UAC-D128-ADF28MS
UAC-D128-ADF28MS

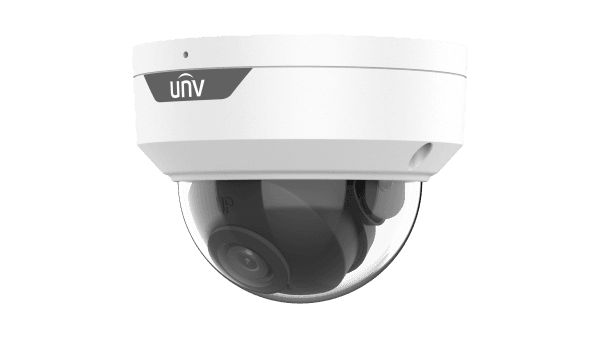

8MP LightHunter Fixed IR Dome Analog Camera featuring a 1/2.7" CMOS sensor, 120dB WDR, and IK10 vandal resistance.
High quality imaging with 8MP resolution
TVI/CVI/AHD/CVBS video output support
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal flip, 180° vertical flip
Suitable applications
Request Product Information
Contact our team for product guidance, availability and quotation assistance.
Product Description
Product details
8MP LightHunter Fixed IR Dome Analog Camera featuring a 1/2.7" CMOS sensor, 120dB WDR, and IK10 vandal resistance.
Core Specifications
Technical highlights
09 specifications
Resolution
8 MP (3840 × 2160)
Sensor
1/2.7" CMOS
Lens
2.8 mm / 4.0 mm Fixed
Output
TVI/CVI/AHD/CVBS
Illumination
IR up to 30 m
WDR
120 dB WDR
Audio
Built-in Mic (CVI)
Protection
IP67 / IK10
Power
DC 12V ±25%
UAC-D128-ADF28MS
High quality imaging with 8MP resolution
TVI/CVI/AHD/CVBS video output support
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu in 11 languages, easy to operate
IP67 waterproof and dustproof design, high reliability
Built-in microphone for high quality audio transmission via coaxial cables
