IPC314SB-ADF28KMC-DL-I1
Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.
Prime Series
IPC314SB-ADF28KMC-DL-I1
IPC314SB-ADF28KMC-DL-I1

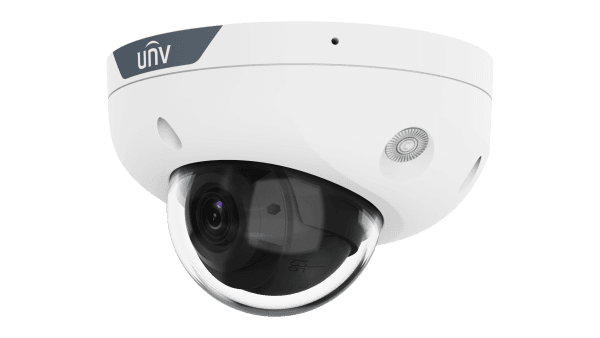

4MP Dual-light WDR Mini Dome Network Camera featuring a 1/2.9" CMOS sensor, Colorhunter with Wise ISP technology, and intelligent people flow counting.
High quality image with 4MP, 1/2.9" CMOS sensor
4MP (2688 × 1520)@30/25 fps; 4MP (2560 × 1440)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Colorhunter with Wise ISP technology ensures 24 hour full color images
Intelligent perimeter protection (cross line, intrusion, enter/leave area detection)
Intelligent Intrusion Prevention System based on target classification
Suitable applications
Request Product Information
Contact our team for product guidance, availability and quotation assistance.
Product Description
Product details
4MP Dual-light WDR Mini Dome Network Camera featuring a 1/2.9" CMOS sensor, Colorhunter with Wise ISP technology, and intelligent people flow counting.
Core Specifications
Technical highlights
11 specifications
Resolution
4 MP (2688 × 1520)
Sensor
1/2.9" CMOS
Lens
2.8 mm Fixed
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Illumination
IR up to 30m + Warm Light up to 30m
WDR
130 dB True WDR
Storage
MicroSD up to 512 GB
Protection
IP67 / IK10
Audio
Built-in dual-mic and speaker, 1/1 Audio I/O
Alarm
1/1 Alarm I/O
Power
DC 12V ±25%, PoE (IEEE 802.3af)
IPC314SB-ADF28KMC-DL-I1
High quality image with 4MP, 1/2.9" CMOS sensor
4MP (2688 × 1520)@30/25 fps; 4MP (2560 × 1440)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Colorhunter with Wise ISP technology ensures 24 hour full color images
Intelligent perimeter protection (cross line, intrusion, enter/leave area detection)
Intelligent Intrusion Prevention System based on target classification
Intelligent People Flow Counting and Crowd Density Monitoring
130dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built in dual mic and speaker
Smart IR, up to 30 m and White light, up to 30 m
Supports 512 G Micro SD card
IK10 vandal resistant and IP67 protection
