IPC3224SS-ADF28(40)K-I1
Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.
Prime Series
IPC3224SS-ADF28(40)K-I1
IPC3224SS-ADF28(40)K-I1

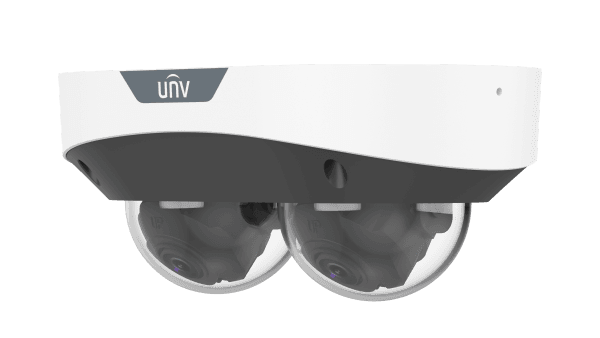

2*4MP LightHunter MultiView Fixed IR Dome Network Camera featuring a single IP with dual channels, smart intrusion prevention, 130 dB true WDR, and intelligent people flow counting.
High quality image with 2 × 4 MP resolution, 1/3.0" CMOS sensor
Single IP with dual channels
4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection (cross line, intrusion, enter/leave area)
Intelligent intrusion prevention system based on target classification
Suitable applications
Request Product Information
Contact our team for product guidance, availability and quotation assistance.
Product Description
Product details
2*4MP LightHunter MultiView Fixed IR Dome Network Camera featuring a single IP with dual channels, smart intrusion prevention, 130 dB true WDR, and intelligent people flow counting.
Core Specifications
Technical highlights
11 specifications
Resolution
2 × 4 MP (2688 × 1520)
Sensor
1/3.0" CMOS
Lens
2.8 mm Fixed
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Illumination
IR up to 30 m (98.4 ft)
WDR
130 dB True WDR
Storage
MicroSD up to 512 GB
Protection
IP67 / IK10
Audio
Built-in dual-mic, 1/1 Audio I/O
Alarm
1/1 Alarm I/O
Power
DC 12V ±25%, PoE (IEEE 802.3af)
IPC3224SS-ADF28(40)K-I1
High quality image with 2 × 4 MP resolution, 1/3.0" CMOS sensor
Single IP with dual channels
4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection (cross line, intrusion, enter/leave area)
Intelligent intrusion prevention system based on target classification
Intelligent people flow counting and crowd density monitoring (channel 1)
130 dB true WDR technology enables clear image in strong light scene
Built-in dual-mic
MicroSD, up to 512 GB
IP67 protection and IK10 vandal resistant
3-axis adjustment
