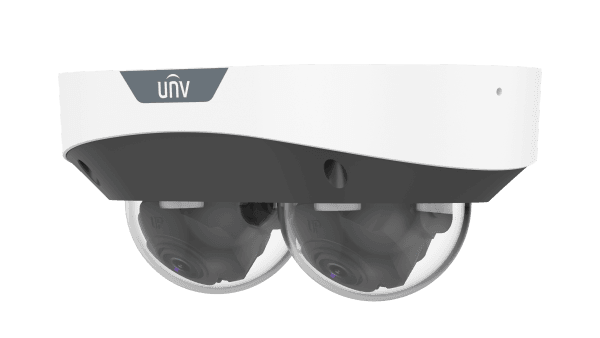

IPC3224SS-ADF40K-I1

Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.

View Product Details

Network Cameras

Prime Series

IPC3224SS-ADF40K-I1

2*4MP LightHunter MultiView Fixed IR Dome Network Camera featuring single IP with dual channels and 130dB true WDR.

High quality image with 2 × 4 MP resolution, 1/3.0" CMOS sensor

Single IP with dual channels

Both channels support intelligent perimeter protection (cross line, intrusion, enter/leave area)

Intelligent intrusion prevention system accurately focusing on humans, vehicles, and non-motor vehicles (channel 1)

Intelligent people flow counting and crowd density monitoring (channel 1)

130 dB true WDR technology enables clear image in strong light scene

Suitable applications

Multi-directional surveillancePerimeter protectionCity surveillanceRetail environments

Request Product Information

Contact our team for product guidance, availability and quotation assistance.

Product Description

Product details

2*4MP LightHunter MultiView Fixed IR Dome Network Camera featuring single IP with dual channels and 130dB true WDR.

Multi-directional surveillance

Perimeter protection

City surveillance

Retail environments

Core Specifications

Technical highlights

10 specifications

Resolution

4 MP (2688 × 1520)

Sensor

1/3.0" CMOS

Lens

4.0 mm Fixed (F1.6)

Compression

Ultra 265 / H.265 / H.264 / MJPEG

Illumination

IR up to 30 m (98.4 ft.)

WDR

130 dB True WDR

Storage

MicroSD up to 512 GB

Protection

IP67 / IK10

Audio/Alarm

1/1 Audio I/O, 1/1 Alarm I/O, Built-in Dual-mic

Power

DC 12V ±25%, PoE (IEEE 802.3af)
