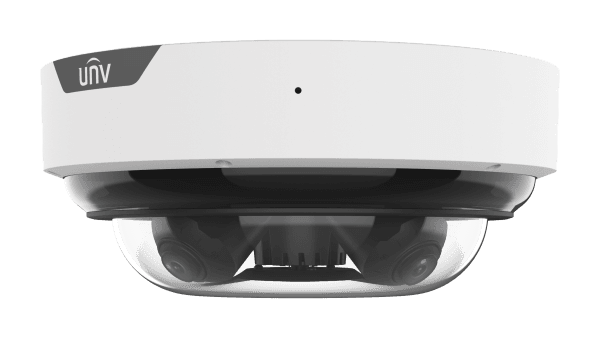

IPC8645EA-ADZKM-I1

Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.

View Product Details

Network Cameras

Pro Series

IPC8645EA-ADZKM-I1

20MP Super Starlight IR 4-Directional Panoramic Dome Network Camera with four independent channels, 5MP resolution per channel, 5X optical zoom, 130 dB true WDR, and advanced intelligent detection.

One IP with four channels

Supports independent adjustment of pan, tilt, and rotation for each lens

4-channel video output with 5MP (2880 × 1620)@30 fps per channel

5X optical zoom with 2.7–13.5mm focal length

Ultra 265, H.265, H.264, MJPEG video compression

130 dB true WDR technology for clear images in strong backlight

Suitable applications

Commercial buildingsRetail storesPublic spacesLarge-area surveillance

Request Product Information

Contact our team for product guidance, availability and quotation assistance.

Product Description

Product details

20MP Super Starlight IR 4-Directional Panoramic Dome Network Camera with four independent channels, 5MP resolution per channel, 5X optical zoom, 130 dB true WDR, and advanced intelligent detection.

Commercial buildings

Retail stores

Public spaces

Large-area surveillance

Core Specifications

Technical highlights

10 specifications

Resolution

4 × 5MP (2880 × 1620)

Sensor

1/2.7" CMOS

Lens

2.7–13.5mm, 5X Optical Zoom

Compression

Ultra 265 / H.265 / H.264 / MJPEG

Illumination

IR up to 50m (164.0 ft)

WDR

130 dB True WDR

Storage

MicroSD up to 512GB

Protection

IP67 / IK10

Network

1 × RJ45 10/100/1000M Base-TX Ethernet

Power

DC 24V ±25%, AC 24V ±25%, PoE (IEEE 802.3bt)
